Benefits of AO Smith Heat Pumps

• Energy Efficiency – Heat pumps consume less electricity compared to traditional heating and cooling systems, making them highly energy-efficient.
• Cost Savings – Lower energy consumption translates to reduced electricity bills over time.
• Dual Functionality – Can be used for both heating and cooling, eliminating the need for separate systems.
• Eco-Friendly – Produces fewer carbon emissions compared to fossil fuel based heating systems.
• Consistent Comfort – Provides uniform heating and cooling without sudden temperature fluctuations.
• Long Lifespan – Properly maintained heat pumps can last 15-20 years, making them a long-term investment.
• Remote control - Can be remotely controlled.
• Low Maintenance – Requires minimal upkeep compared to traditional heating systems
• Improved Air Quality – Helps reduce indoor humidity levels and filters out dust and allergens.
• Renewable Energy Compatible – Can be integrated with solar panels for even greater energy savings.

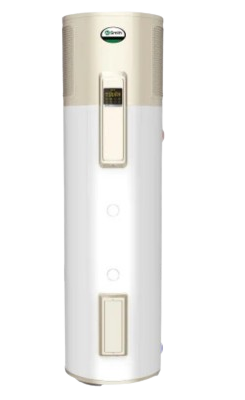

HPI-D Series

Brochure

• Features
• Technical Specification

• Heat pump water temperature 65°C
• Maximum water temperature 75°C
• Heat pump input 460w, COP 3.8
• Patented AES energy-saving system
• Two elements back up for quick recovery (3kW & 2+1kW)
• Timer setting
• Rwired button control
• TR134a Green refrigerant
• Instant mode (3000 W)

Model	HPW-60A2	HPW-80A2
Rated volume [L]	60	80
Rated voltage [V] / Rated frequency [Hz]	220 / 50	220 / 50
Rated input power [W] / Rated current [A]	200 / 10	200 / 10
Efficiency mode	200	200
Hybrid turbo mode	2200 / 10	2200 / 10
MAX mode	3000 / 13.7	3000 / 13.7
Heating capacity [W]
Efficiency mode	540	540
Hybrid turbo mode	2540	2540
MAX mode	3000	3000
Inner tank rated pressure bar	8	8
Range of water temperature [°C]	35-75	35-75
Environment range of energy-saving mode [°C]	10-44	10-44
Dimensions [A x B] [mm]	837 x 473	992 x 473
Net weight [kg]	42	45

Download Brochure

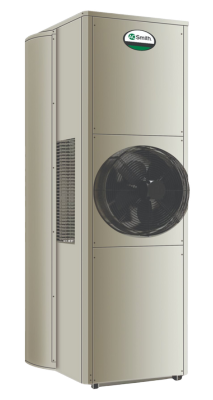

CAHP – 1.5HP DI

Brochure

• Features
• Technical Specification

• Heat pump water temperature 65°C maximum
• Energy-saving, fast heating, electric back up and standard modes
• LED display
• R134a green refrigerant
• Integrate design for outdoor installation
• Available in 300 & 450 Litre storage

MODEL	CAHP1-5DI-80-6	CAHP1-5D-120-6	CAHP1-5D-120-12
Model Type	/	Outdoor integrated heat pump water heater	/
HP Rated Power (W)	875	875	/
HP Rated Heating Capacity (W)	3680	3680	/
COP (W/W)	4.20	4.20	/
Electrical Heating Capacity (W)	6000	6000	12000
Maximum Operation Current	/	/	37.5
Current (230V / 1N / 50Hz) (A)	38.7	38.7	71.9
Hot Water Delivering Efficiency (L/h)	105	105	/
High Demand (L/h)	277	277	449
Refrigerant	R134a	R134a	/
Refrigerant Charge Quantity (g)	940	940	/
Tank Capacity (L)	300	455	455
Net Weight (kg)	161	194	194
Operation Weight (kg)	461	649	649
Water Temp in Efficiency Mode (°C)	65	65	/
Operation Temperature Range (°C)	37–75	37–75	/
Ambient Temperature for HP (°C)	7–43	7–43	/
Unit Operation Noise (dB(A))	54	54	/
Air Outlet Noise (dB(A))	58	58	/
Dimension (LxWxH) (mm)	910x610x1700	1012x713x1700	1012x713x1700
Anode	Aluminum Rod	Aluminum Rod	/
Control Mode	Led Wire Display (Standard 10m, Optional Maximum 20m)	Led Wire Display (Standard 10m, Optional Maximum 20m)	/
Operation Mode	Efficiency, High Demand, Standard	Efficiency, High Demand, Standard	/
Other Control Functions	Timer, Fault Alarming, Water Pump Controlling, AES HP	Timer, Fault Alarming, Water Pump Controlling, AES HP	/
Power Supply Specifications	230V~50Hz	230V~50Hz	230/400V 3N~50Hz
Connection Size → Inlet / Outlet / T&P Valve	NPT 3/4" (Female Thread)	NPT 3/4" (Female Thread)	/
Drain Valve	NPT 3/4" (Female Thread)	NPT 3/4" (Female Thread)	/

Download Brochure

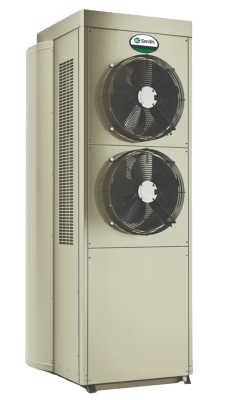

CAHP – 3HP DI

Brochure

• Features
• Technical Specification

• Heat pump water temperature 65°C maximum
• Energy-saving, fast heating, electric back up and standard modes
• Smart control to avoid cold water mixing
• LED display
• R134a green refrigerant
• Integrated design for outdoor installation

MODEL	CAHP-MC-38 (10HP)	CAHP-MC-19 (5HP)
Power Supply	380V 3N ~ 50Hz	380V 3N ~ 50Hz
Voltage Range	380V +/- 10%	380V +/- 10%
Rated Heating Capacity (1)	38 kW	19.8 kW
Rated Water Flow (1)	6.5 CMH	3.4 CMH
Rated Power Input (1)	10.3 kW	6.02 kW
Rated Operation Current (1)	18.6 A	11.0 A
Maximum Power Input	13.2 kW	6.8 kW
Maximum Operation Current	23.3 A	11.7 A
Operation Noise (2)	65 dB(A)	60 dB(A)
Refrigerant / Quantity	R410a / 6.2 kg	R410a / 2.8 kg
Refrigerant Side High Side	4.2 Mpa	4.4 Mpa
Design Pressure Low Side	3.1 Mpa	3.1 Mpa
Water Side Design Pressure	1.0 Mpa	1.0 Mpa
Water Side Pressure Drop (3)	45 kPa	73 kPa
Water Connection Size	DN40 (R1 1/2")	DN32 (R1 1/4")
Waterproof Class	IPX4	IPX4
Net Weight	287 kg	170 kg
Dimensions (L x W x H)	1020 x 846 x 1840 mm	719 x 761 x 1160 mm

Download Brochure

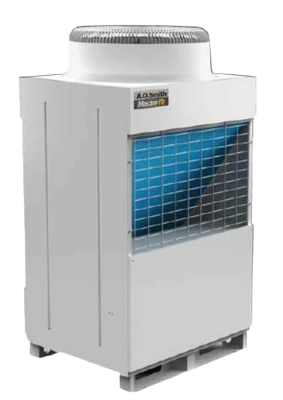

CAHP – 5HP/10HP

Brochure

• Features
• Technical Specification

• Energy-saving
• Power off memory
• Auxiliary heater control system
• Refrigerant: R410a
• LCD Display
• Operated centrally controlled

MODEL	CAHP3.0-120-6	CAHP3.0-120-12
HP Rated Power (kW)	2.22	8
COP (W/W)	3.6	3.6
Electrical Heating Capacity (W)	6000	12000
Maximum Operation Current (A)	15.8 (400V), 47.1 (230V)	31.5 (400V), 78.5 (230V)
Hot Water Delivering Rate Efficiency (A)	230	230
Hot Water Delivering Rate High Demand (A)	401	573
Refrigerant	R134a
Refrigerant Charge Quantity (g)	1850	1850
Tank Capacity (L)	455	455
Net Weight (Kg)	229	229
Operation Weight (Kg)	684	684
Water Temp in Efficiency Mode (°C)	65	65
Operation Temperature Range (°C)	35~75	35~75
Ambient Temperature for HP (°C)	7~43	7~43
Unit Operation Noise (dB(A))	59	62
Demison (LxWxH) (mm)	995 x 785 x 1700
Anode	Aluminum Rod
Control Mode	Led Wire Display (Standard 10m, Optional Maxium 20m)
Operation Mode	Efficiency, High Demand, Standard
Other Control Functions	Timer, Fault Alarming, Anti-Freezing, Water Pump Controlling
Power Supply Specifications	230V~50Hz and 400V/3N/50Hz
Connection Size ~ Inlet / Outlet / T&P Valve / Drain Valve	3/4 Inch (Female Thread)

Download Brochure

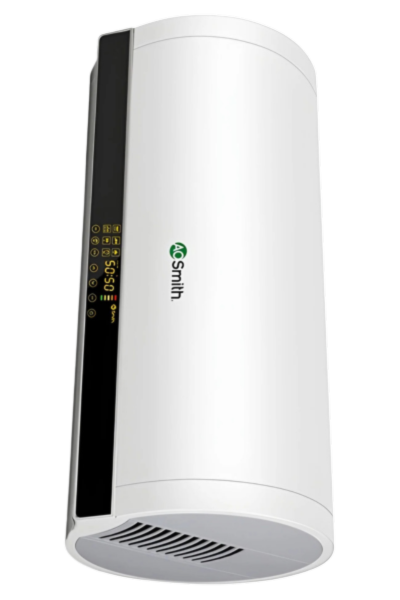

HPI – D Series

Brochure

• Features
• Technical Specification

Heat pump water temperature 55˚C 55˚C

Maximum water temperature 75˚C

Input 200w, COP 2.6

Patented AES energy-saving system

R134a Green refrigerant

Timer setting

Remote control

Two elements back up (2kW & 3kW) for quick recovery

Wall-mounted

Model	HPW-60A2	HPW-80A2
Rated volume [L]	60	80
Rated voltage [V] / Rated frequency [Hz]	220 / 50	220 / 50
Rated input power [W] / Rated current [A]	200 / 10	200 / 10
Efficiency mode	200	200
Hybrid turbo mode	2200 / 10	2200 / 10
MAX mode	3000 / 13.7	3000 / 13.7
Heating capacity [W]
Efficiency mode	540	540
Hybrid turbo mode	2540	2540
MAX mode	3000	3000
Inner tank rated pressure bar	8	8
Range of water temperature [°C]	35-75	35-75
Environment range of energy-saving mode [°C]	10-44	10-44
Dimensions [A x B] [mm]	837 x 473	992 x 473
Net weight [kg]	42	45

Download Brochure

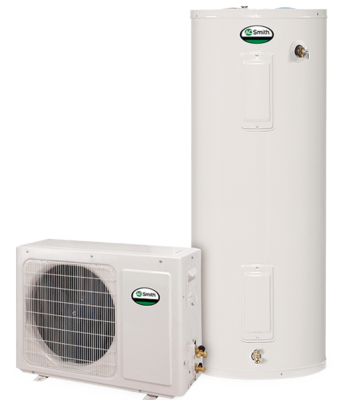

HPA – 80/120 Split

Brochure

• Features
• Technical Specification

• Heat pump water temperature 65°C
• Maximum water temperature 75°C
• Patented AES energy-saving system
• Two elements back up (3kw & 2+1kw) or quick recovery
• Timer setting
• Wired Button Control
• R134a Green refrigerant
• Instant mode (3000 W)

MODEL	HPA-80C1.5A	HPA-120D2.0A
Rated volume [L]	300	450
Voltage / Frequency [V/Hz]	220~ / 50	220~ / 50
Rated Input / Current [W/A]	Efficiency Mode: 1010/4.6 Hybrid Turbo Mode: 2010/9.1	Efficiency Mode: 1380/6.5 Hybrid Turbo Mode: 2380/11
Output(W)COP	3.6	4.2
Output(W)	Efficiency Mode: 3640 Hybrid Turbo Mode: 4640	Efficiency Mode: 5800 Hybrid Turbo Mode: 6800
Water temperature range [°C]	35~75	35~75
Ambient temperature range for Efficiency [°C]	7~43	7~43
Tank rated pressure (bar)	10	10
External unit dimension A [mm]	560	740
B [mm]	320	350
C [mm]	835	820
Tank dimension A [mm]	Ø610	Ø710
B [mm]	1640	1660
Weight of external unit (kg)	37	55
Weight of tank (kg)	98	133
Refrigerant/Quantity	R134a/940(g)	R134a/1400(g)

Download Brochure
